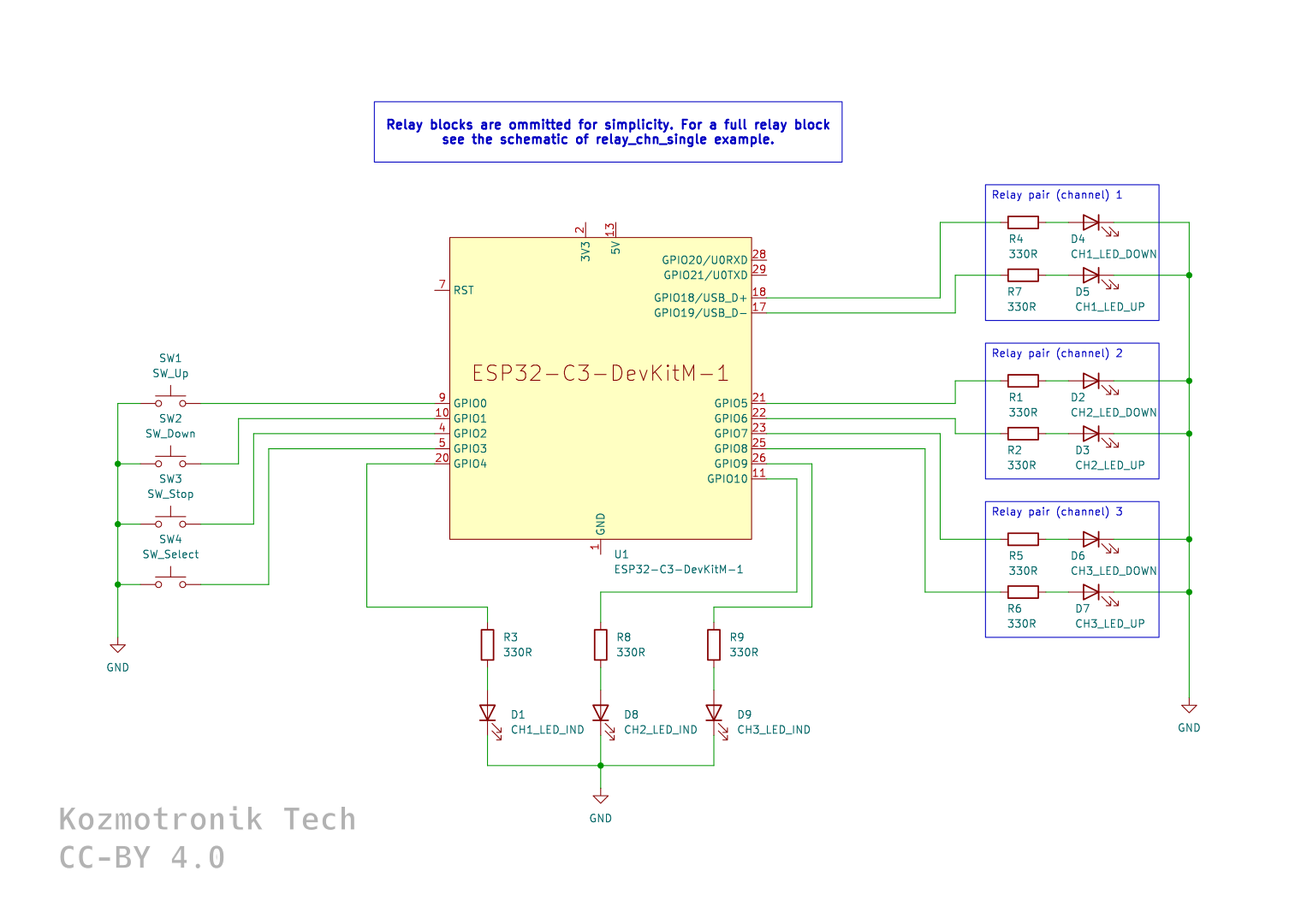

relay_chn/examples/relay_chn_multi/example_schematic.png
ismail 4edebf206e Add a multi channel example
Added a multi channel example with run limit, tilting and channel selection
features. Refs #1104 and closes #1111.
2025-09-11 15:50:34 +03:00

132 KiB
1527x1080px
Raw Permalink History

/KozmotronikTech/relay_chn/raw/branch/main/examples/relay_chn_multi/example_schematic.png
